Universal 24V 36V 48V 60V 250W 350W 10A 15A 20A BLDC Brushless Controller for Electric Bike E-Scooter DC Motor

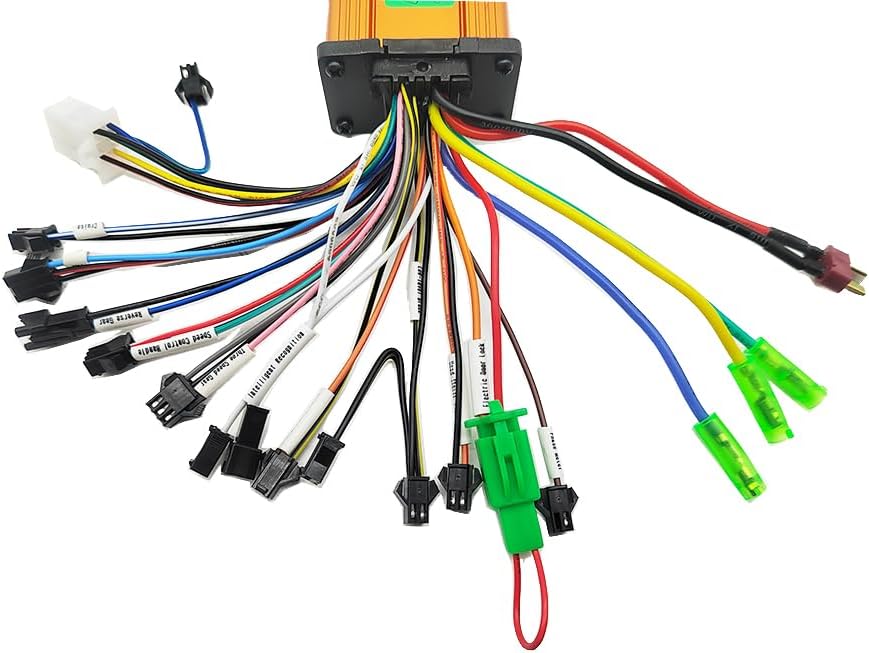

24/36V/48V/60V 250-350W 10A-20A sine wave brushless controller function: 1.low level brake 2.cruise 3.brake light power 4.PAS(pedal assist) 5.reverse gear 6.high level brake 7.speed controller handle（throttle） 8.phase meter 9.three speed gear 10.hall meter 11.hall（5 wires） 12.intelligent recognition（self-learning lines） 13.head/tail light 14.electric door lock 15.phase line 16.battery how to connect ？ 1.connect the motor line (color to color connection） 2. connect the battery line(red wire :battery + , black:battery-) 3. connect the controller throttle line（color to color,connect electric lock （if your throttle not have electric lock，controller 2 wires electric lock can be shorted） 4. connect the hall line(color to color connect) 5.off power,let two intelligent recognition lines connect together,open power, the wheel will forward or reverse. (1.if wheel forward ,Separate the intelligent recognition line. 2.if wheel reverse, Separate the intelligent recognition line. let intelligent recognition lines connect together again,if wheel forward ,Separate two intelligent recognition lines.) These are for adjusting the controller's phase ratio and adapting to the battery voltage. NOTE:when use throttle control speed,two intelligent recognition lines must separate 6.other functions can be connected as needed.

• 1. The controller is equipped with multiple models of adapters, making it more applicable to the throttle.
• 2. This controller features a brushless design, making it smoother to use, more stable, and has a longer lifespan.
• 3. This controller is suitable for various brands and models of electric scooters and electric scooters, and can meet the different needs of users.
• 4. This controller adopts advanced technology and has excellent performance and durability, ensuring the safety and stability of the scooter.
• 5. This controller is available in various models and prices on Amazon, allowing users to choose according to their needs and budget. At the same time, before purchasing, it is recommended that users carefully review the product description and reviews in order to choose a product that meets their needs.
